Galvanised wire mesh fencing

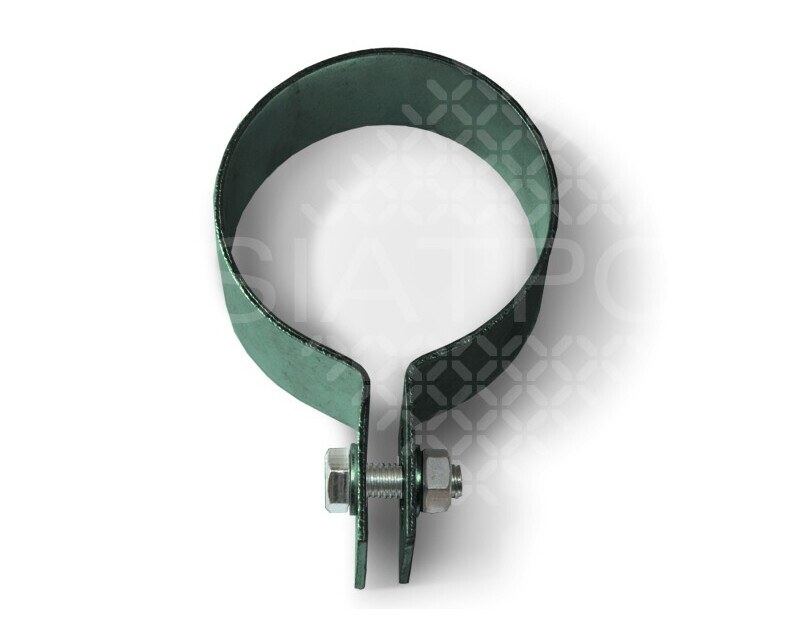

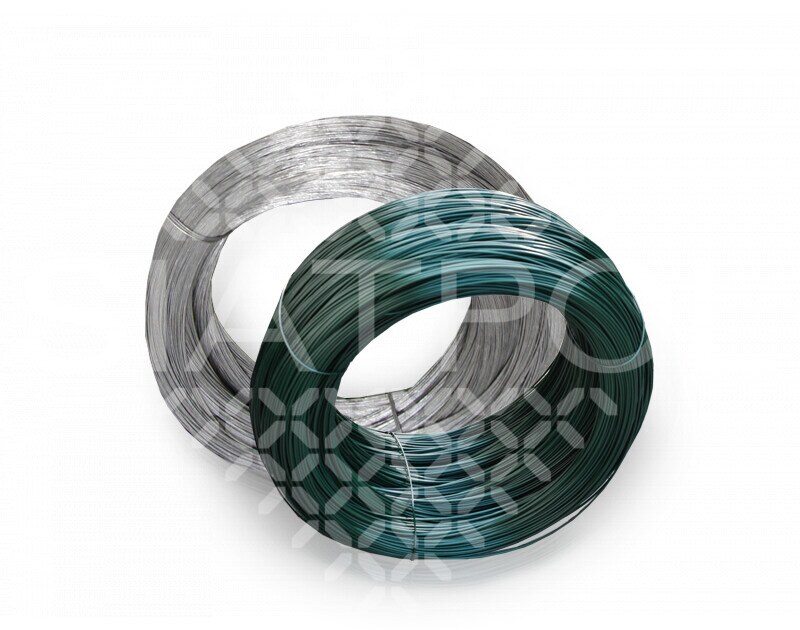

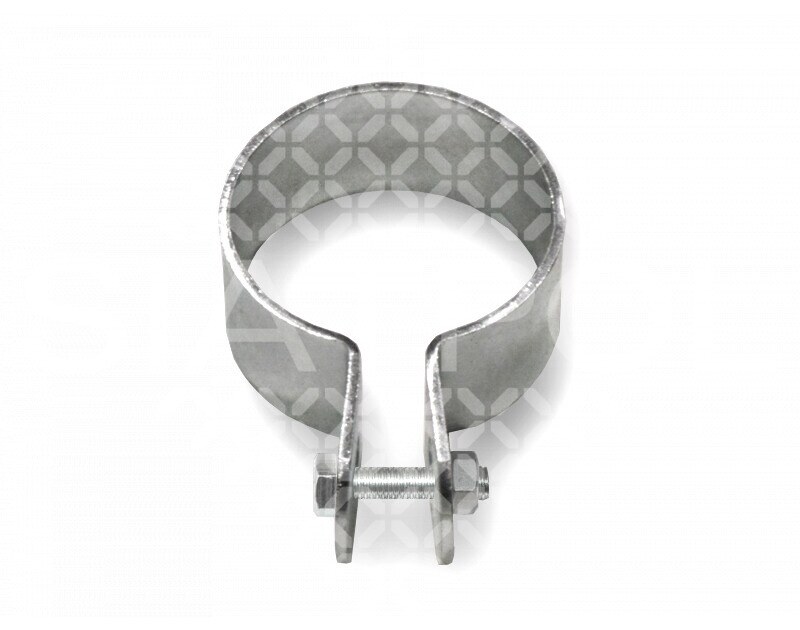

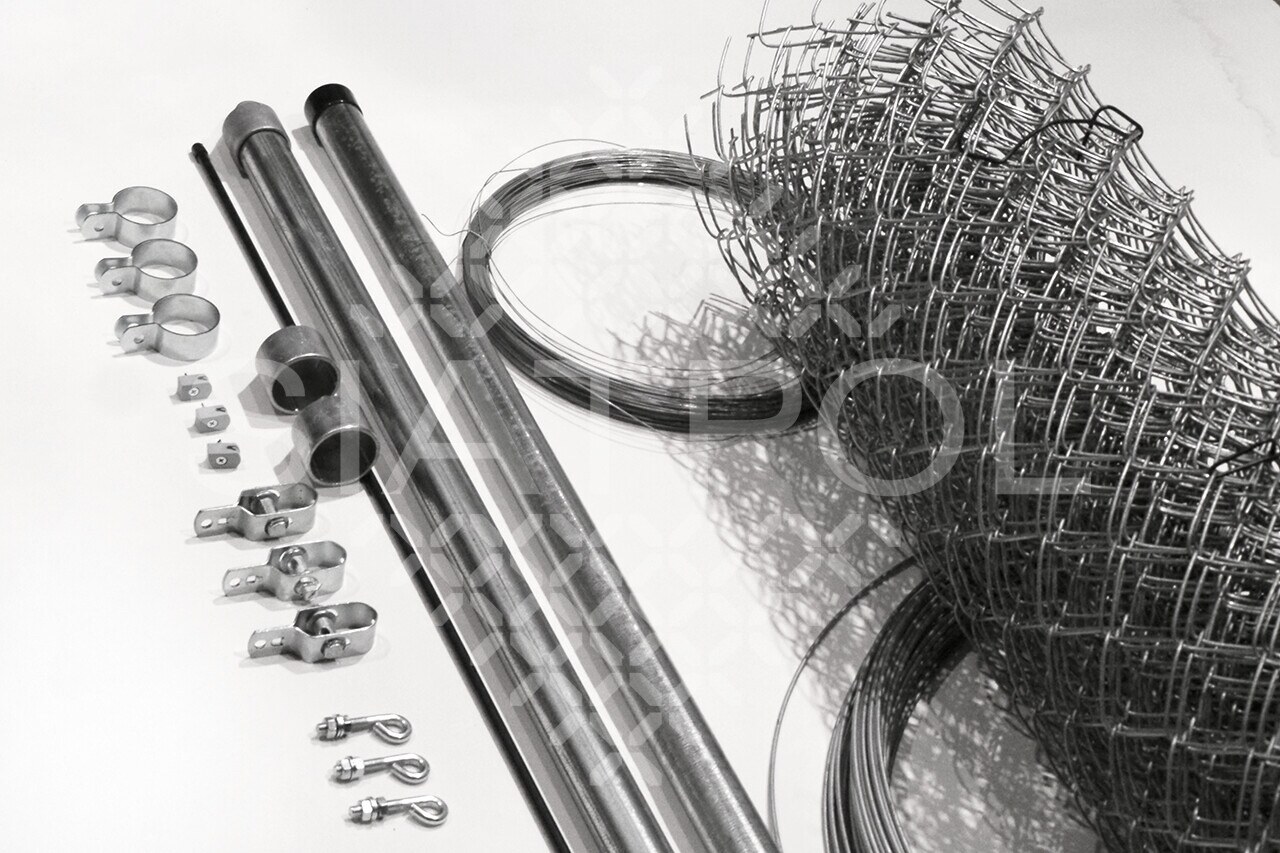

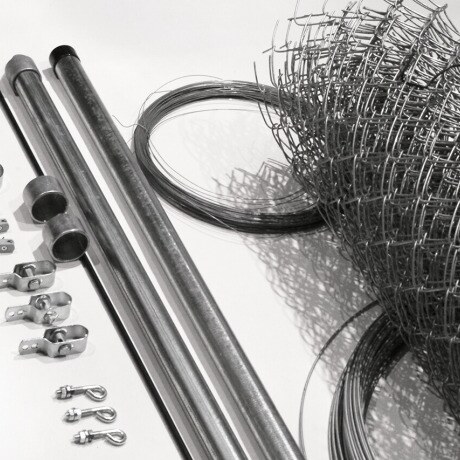

We carry complete fencing systems made of galvanized wire mesh. The product range is complemented by all the essential accessories and parts for building fences, including posts, tension wire, tensioners, post clamps, and barb wire. Mostostal Met also manufactures non-standard fence gates and wickets on special request.

The fencing is made of galvanized wire mesh. The fence posts are available in bare galvanised, finish with or without anti-corrosive paint coating. The posts come with PVC top caps to protect the interior from water.

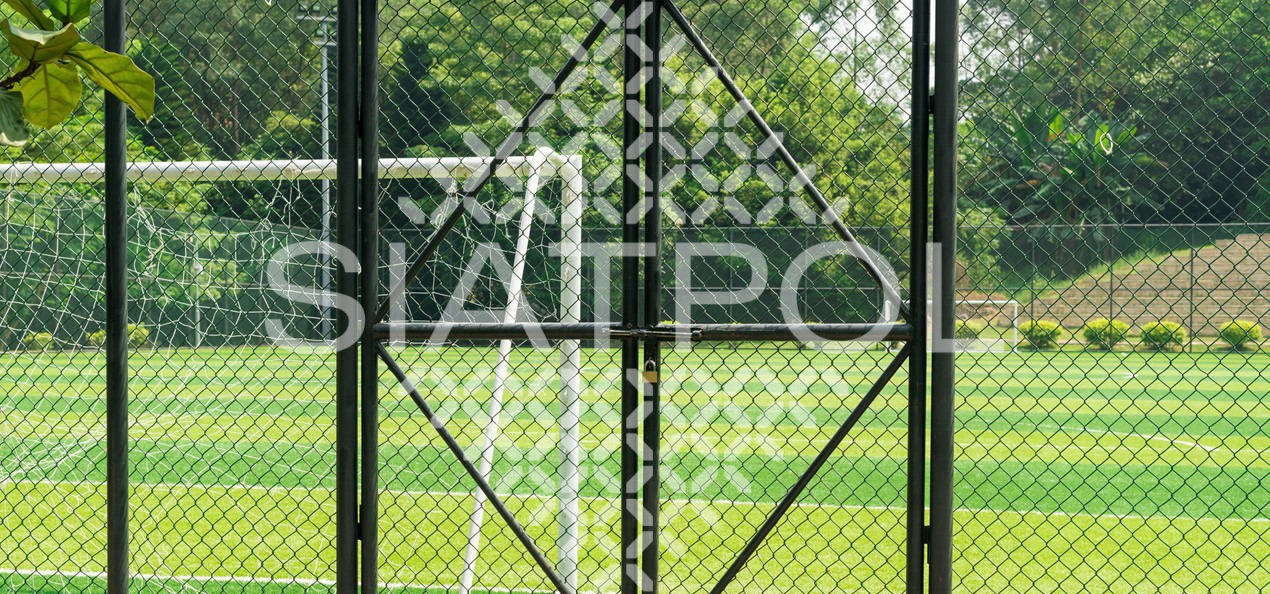

Application: private domestic premises, sports premises, playgrounds, parks and gardens, factories, warehouses, and public buildings.



Technical specifications

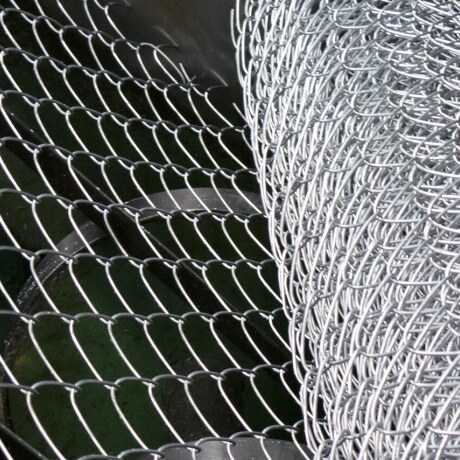

Galvanized wire mesh
Mesh size
[mm]
Wire dia.
[mm]
Mesh width
[mm]
10×10 ø1,0 500

1000

1250

1500

1750

2000

3000
ø1,2
15×15 ø1,2
ø1,4
ø1,6
20×20 ø1,2
ø1,4
ø1,6
ø1,8
ø2,0
30×30 ø2,0
ø2,5
40×40 ø2,5
ø2,8
ø3,0
50×50 ø2,5
ø2,8
ø3,0
ø3,5
ø4,0
60×60 ø2,5
ø2,8
ø3,0
ø3,5
ø4,0

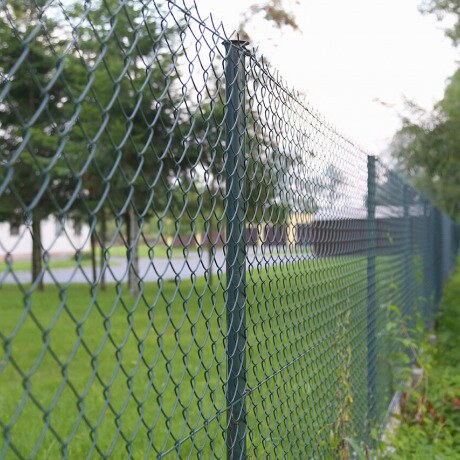

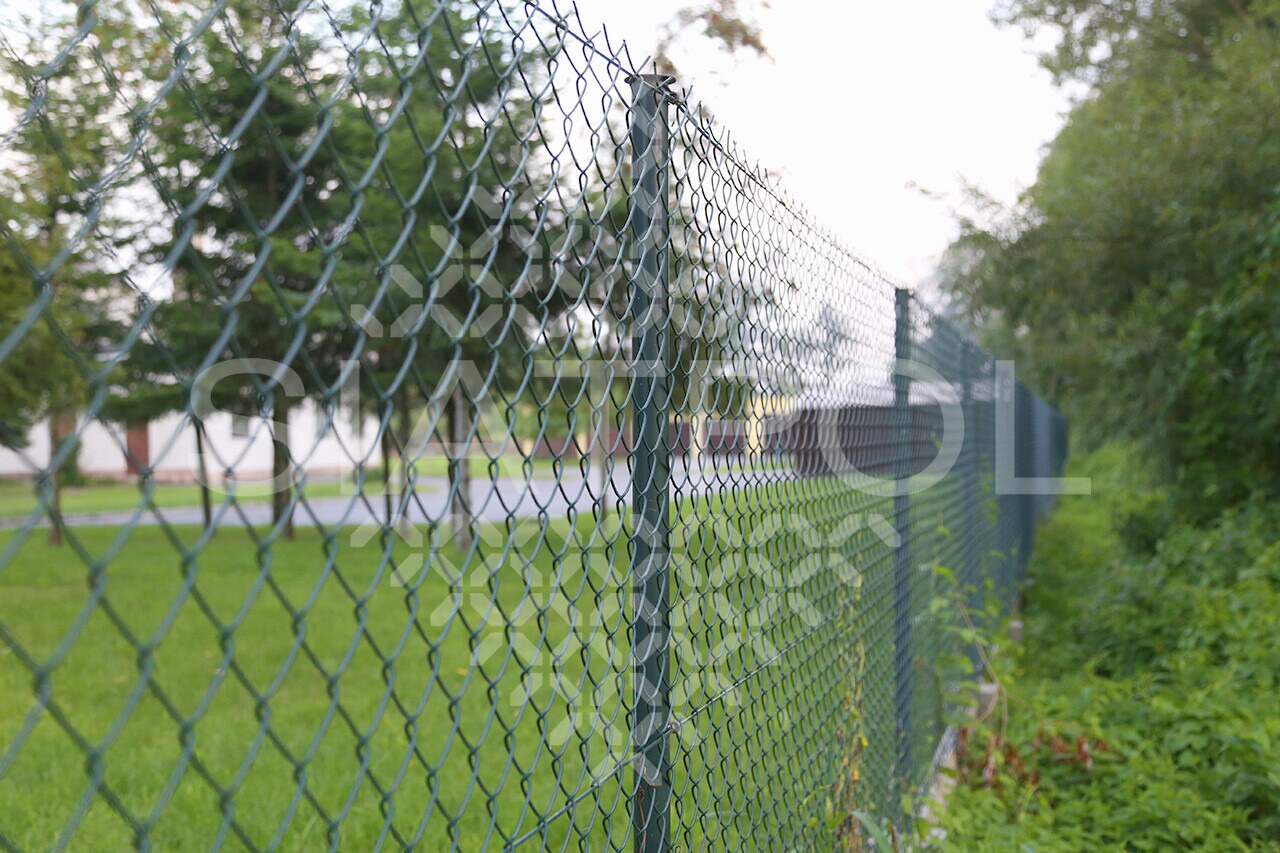

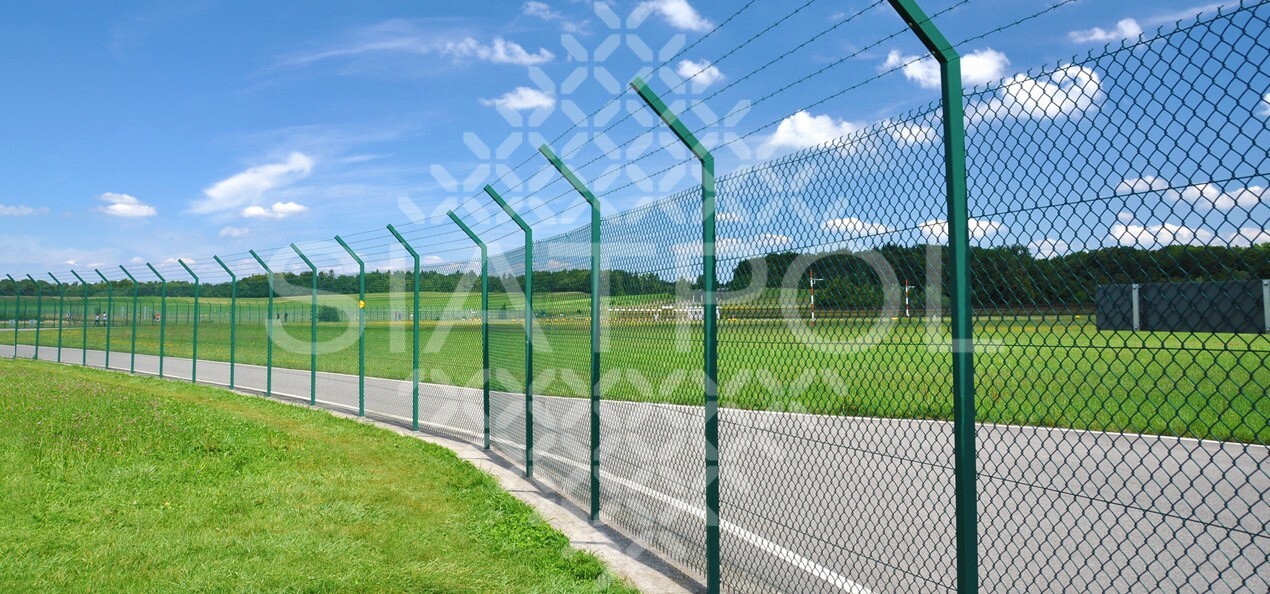

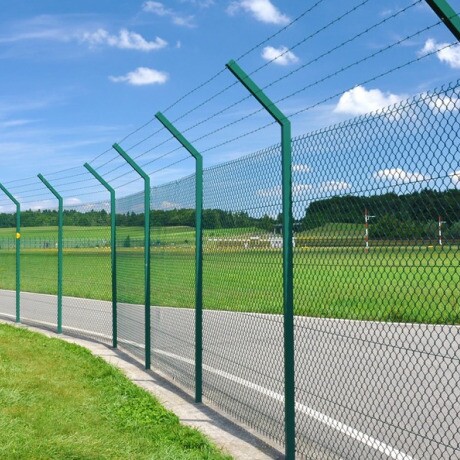

PVC coated wire mesh fencing

We offer complete fencing systems made of PVC coated woven wire mesh. We also provide all parts and accessories necessary for building your fencing, i.e. posts, wire stays, tensioners, clamps and barb wire. We also manufacture gates and wickets on custom order.

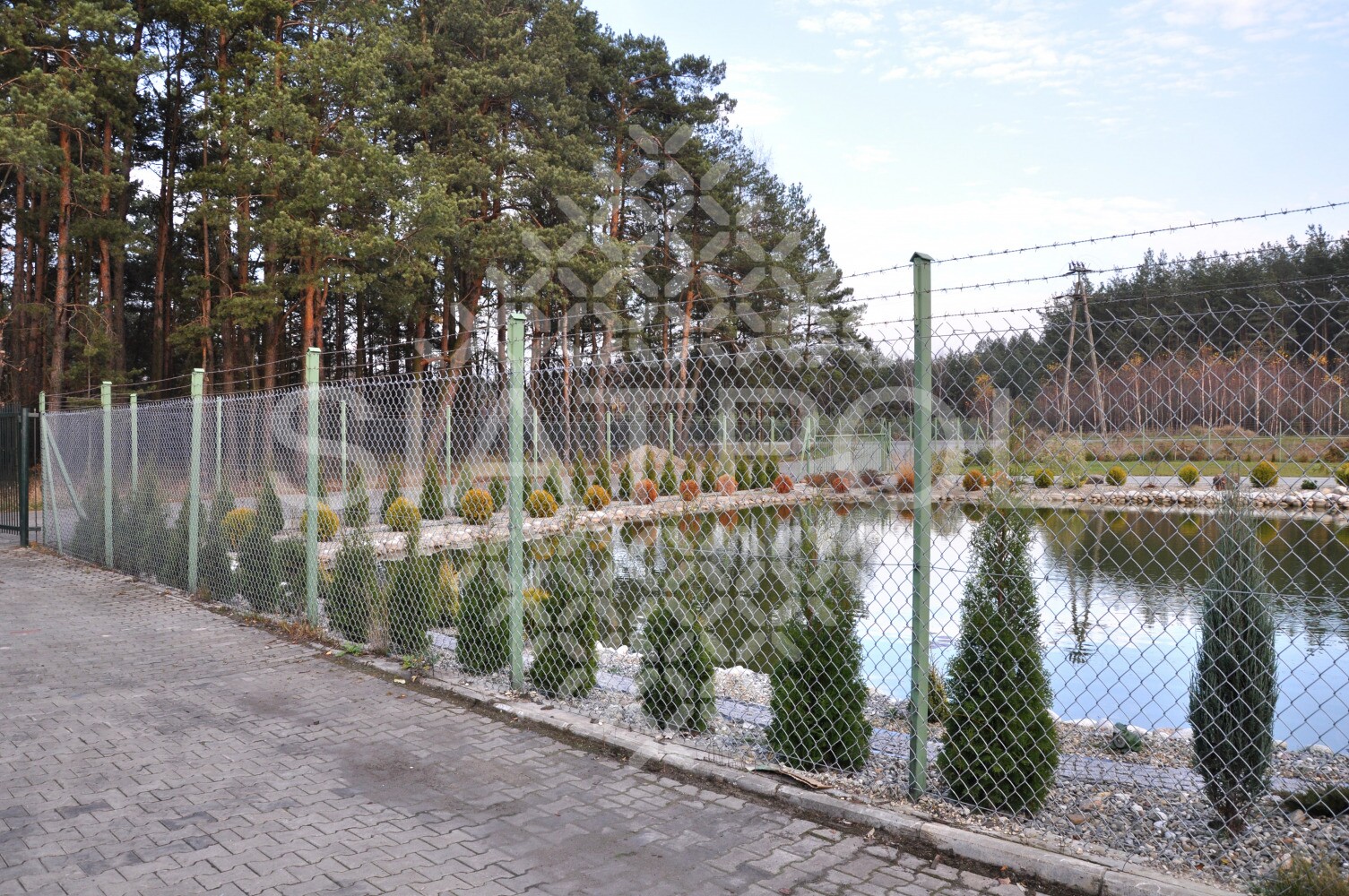

The fences are made of wire mesh finished with a PVC coat that is available in a wide range of colour finish.

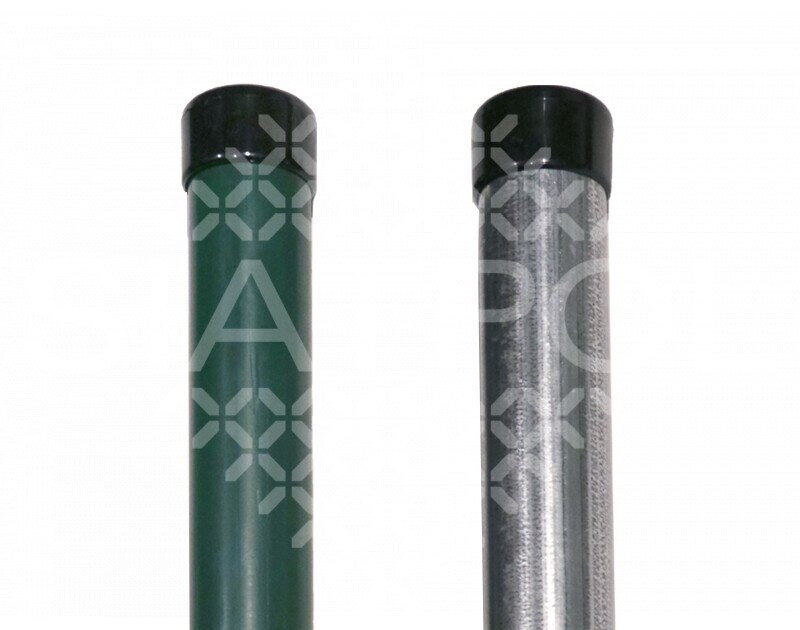

The fence posts are available in bare galvanised finish with or without anti-corrosive powder coating. The posts come with PVC top caps to protect the interior from water.



Technical specifications

PVC coated wire mesh
Height Mesh size Wire diameter
500 mm – 6000 mm 20×20 mm – 65×65 mm ø1,8 mm – ø4,5 mm



Installation method

The wire mesh is installed with a wire stay fed through the mounting holes in the fence posts.

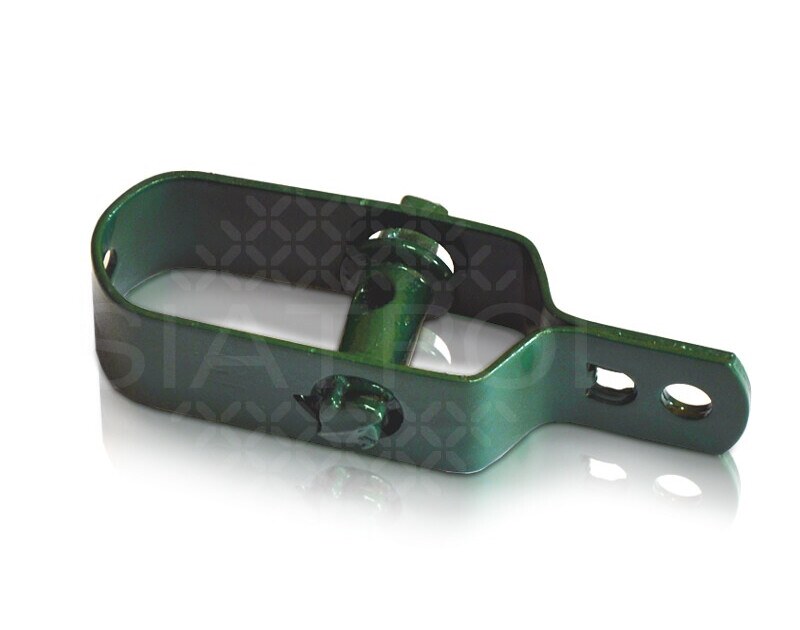

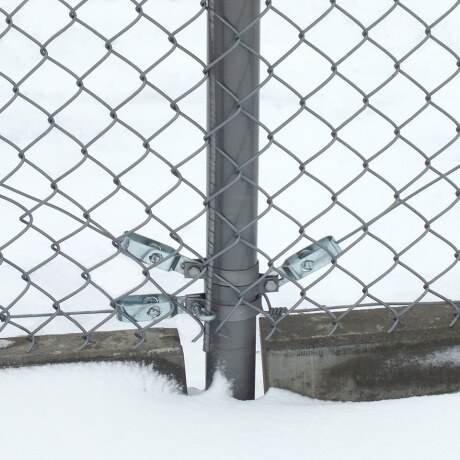

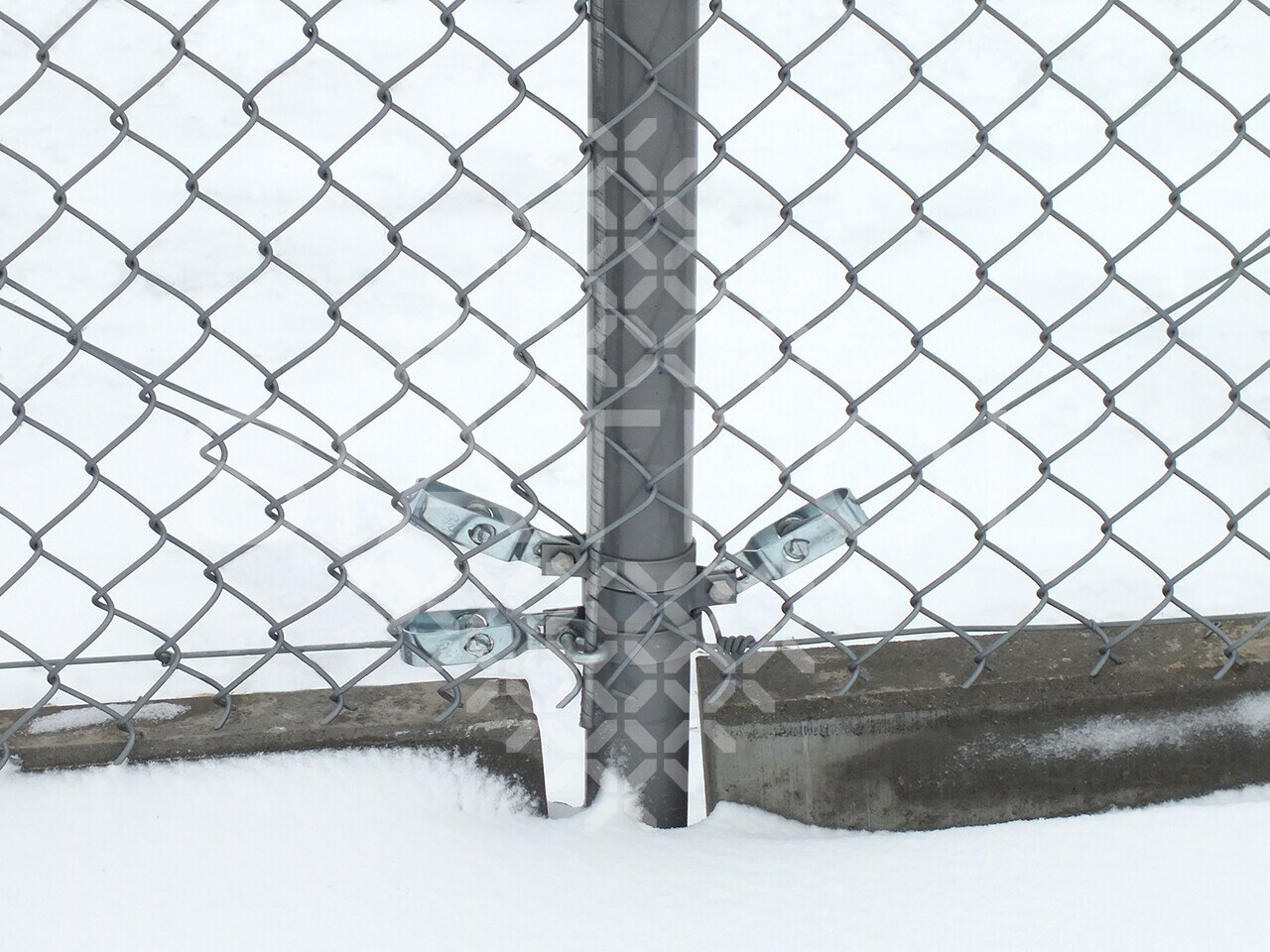

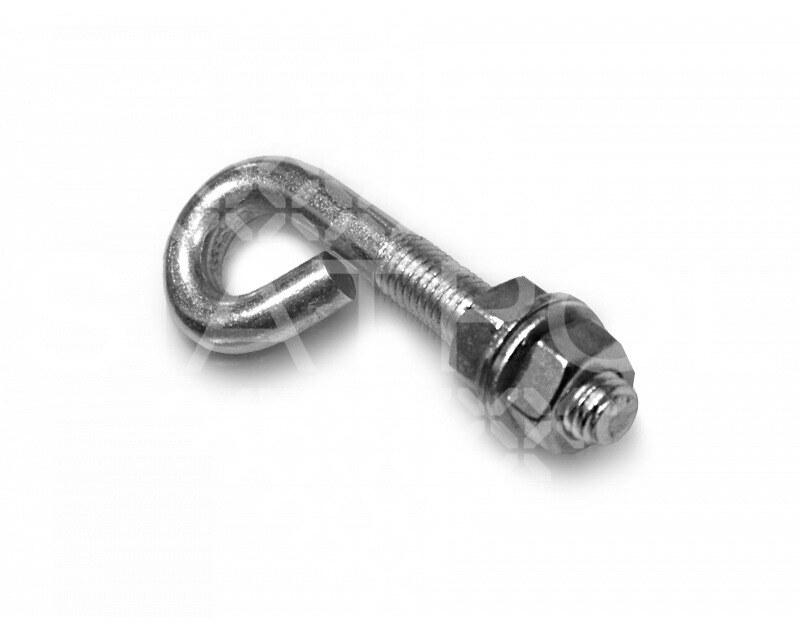

A proper tension of the wire mesh fence is achieved by adjusting the tensioning bolts (the tensioners).

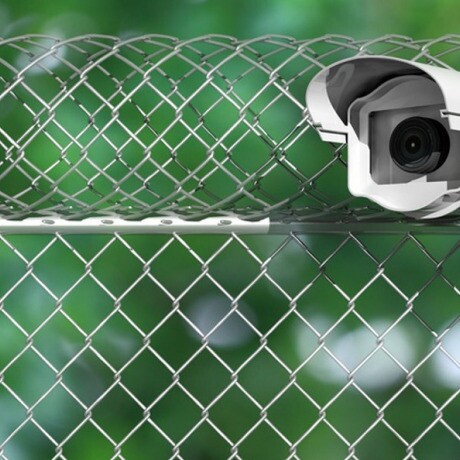

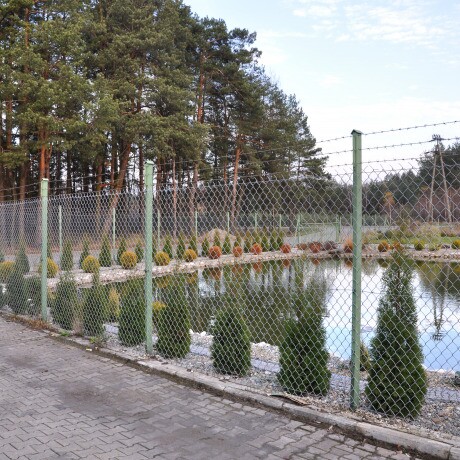

The wire mesh fence can be topped with barb wire, if necessary.

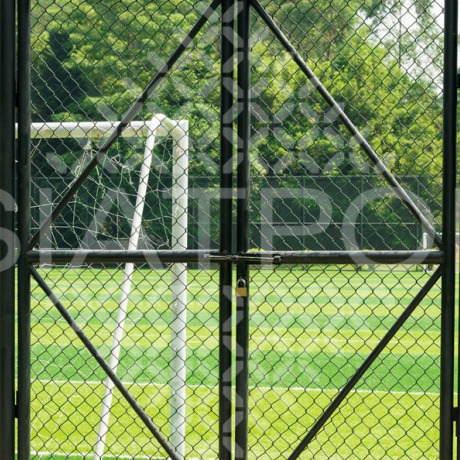

We provide all required installation accessories and a wide range of gates and wickets designed to custom requirements.

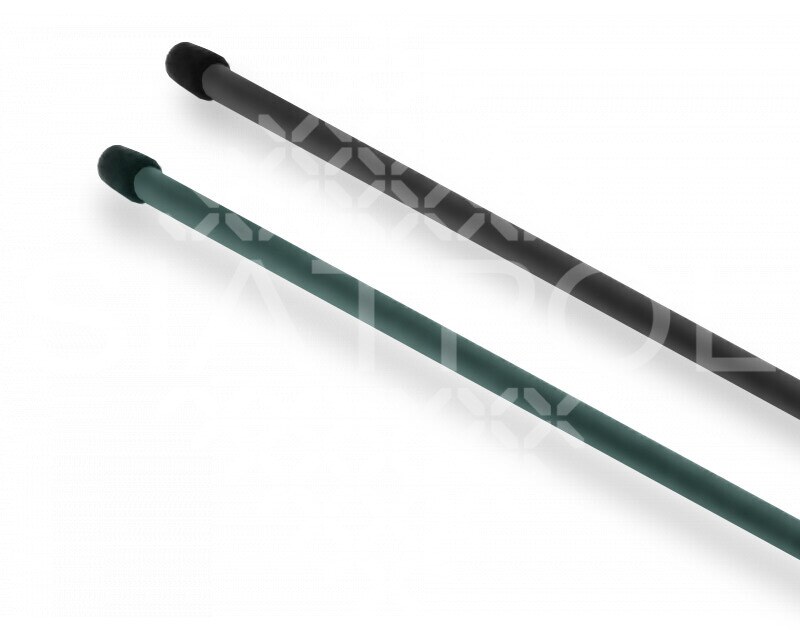

Wire mesh accessories and bases

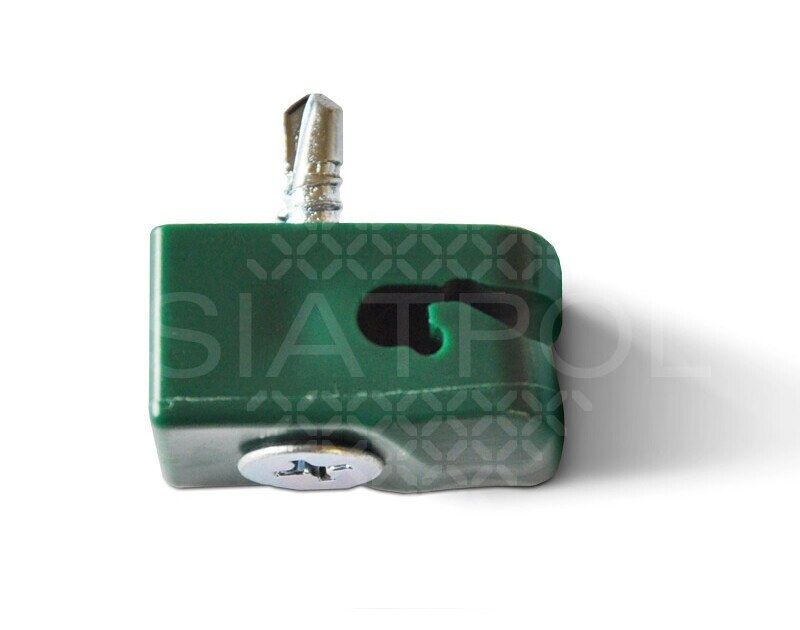

Application: Accessories are used for mounting wire mesh fences. They are made of durable materials, which makes them a reliable element of the fence construction.

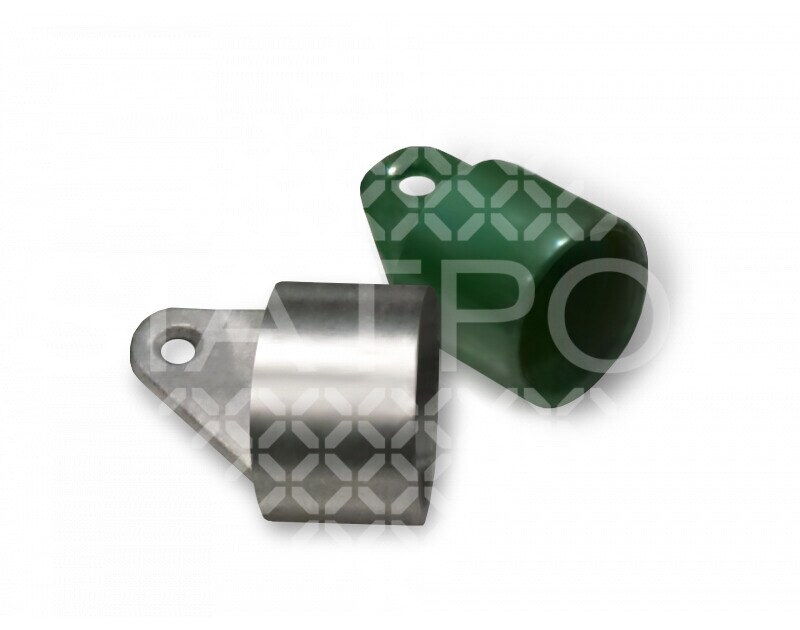

Accessories
